Savaria Vuelift Panoramic Elevators

Savaria Vuelift Panoramic Lift
Savaria Vuelift Panoramic Lift
Savaria Vuelift Panoramic Lift

Savaria Vuelift Panoramic Elevators

Luxury Range

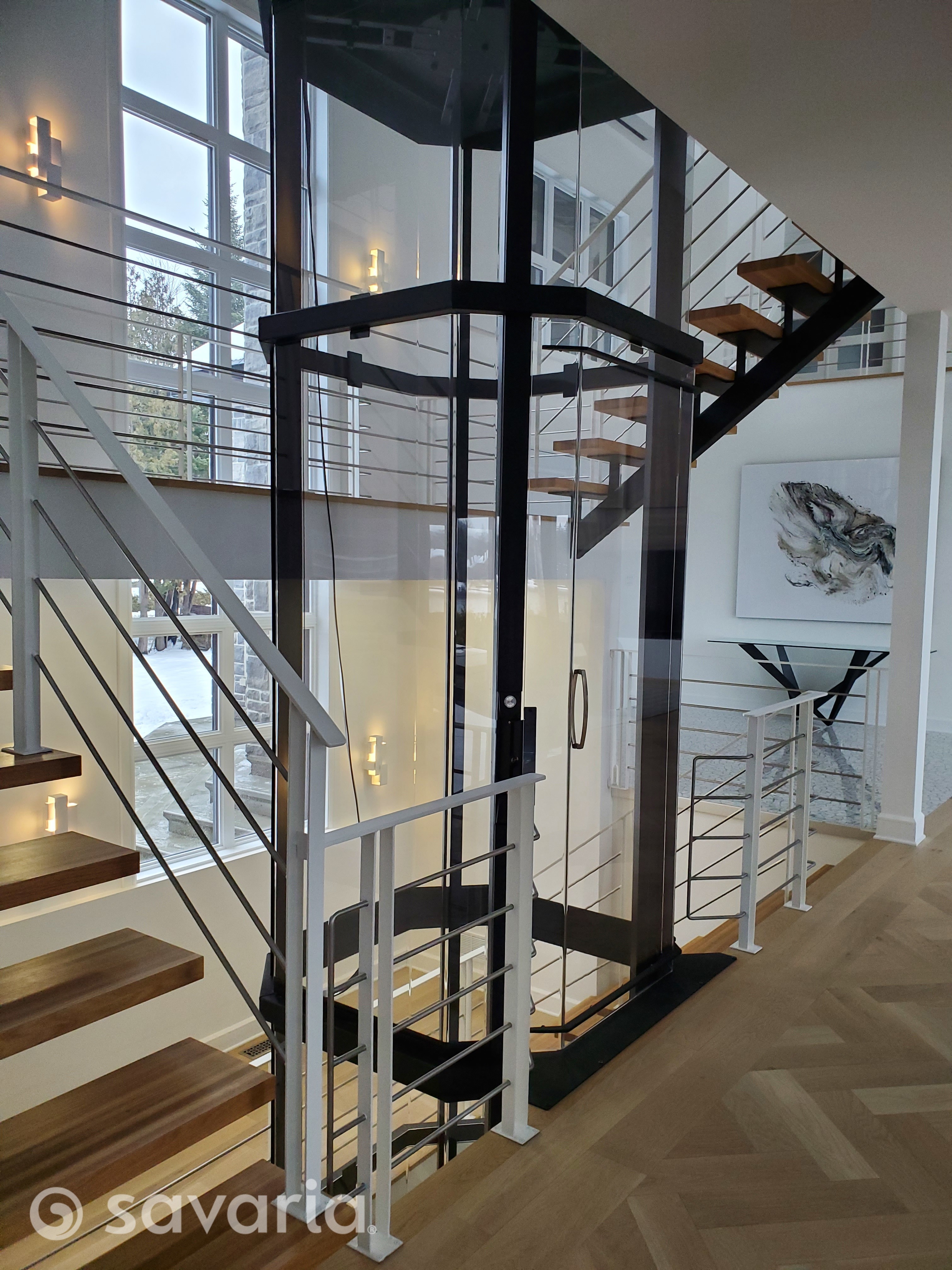

The Savaria VueLift - Panoramic Luxury at its Finest

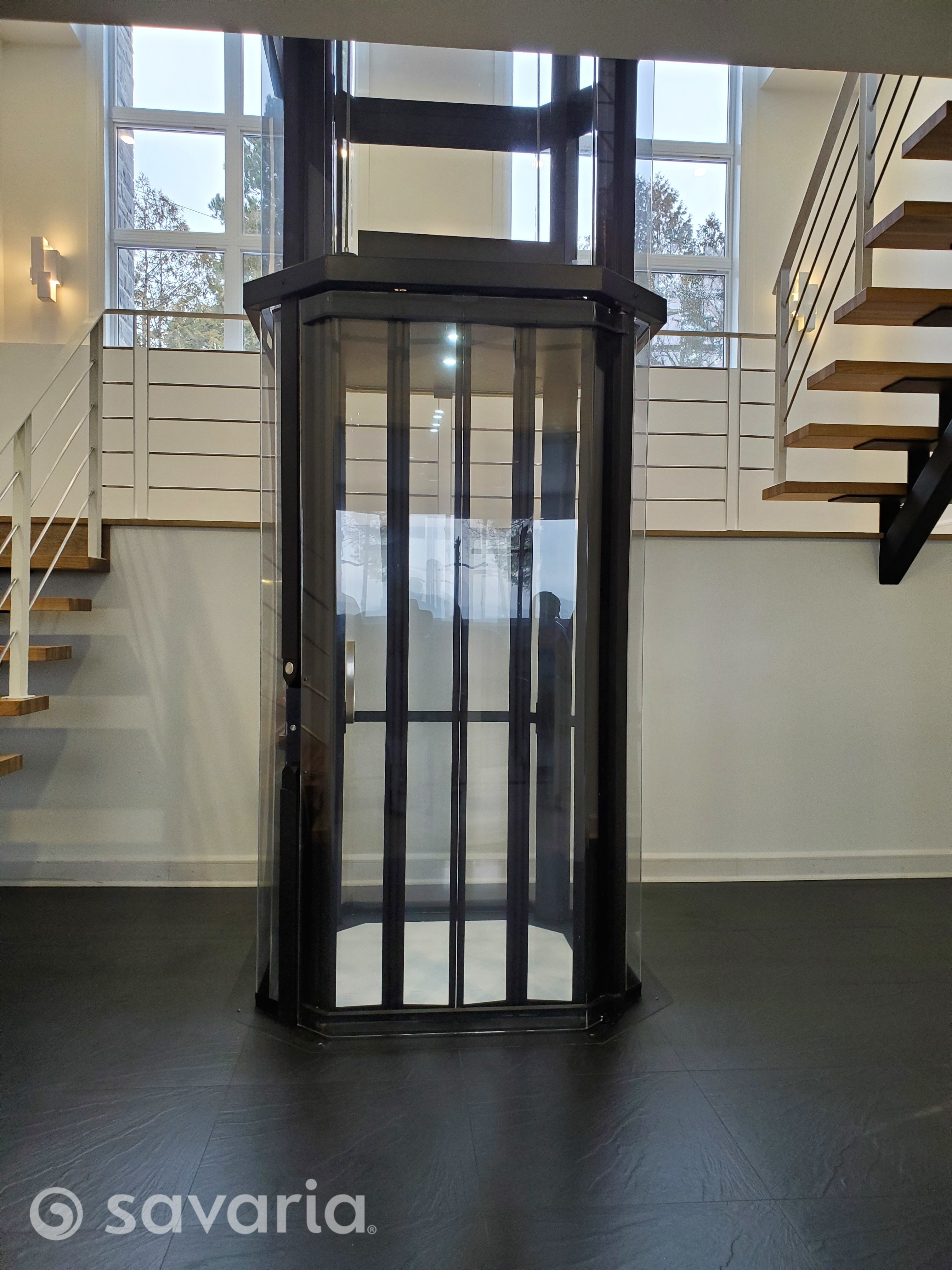

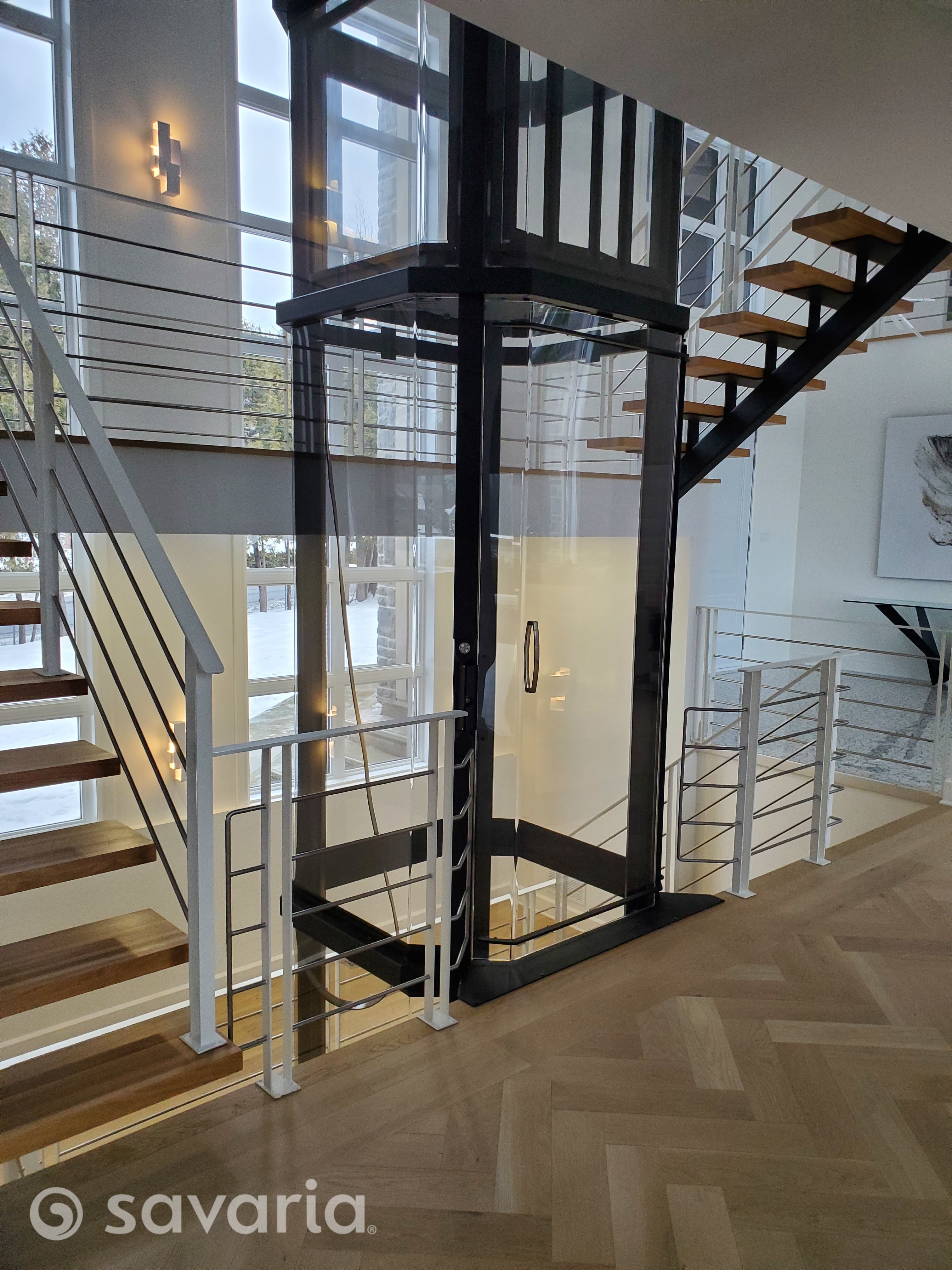

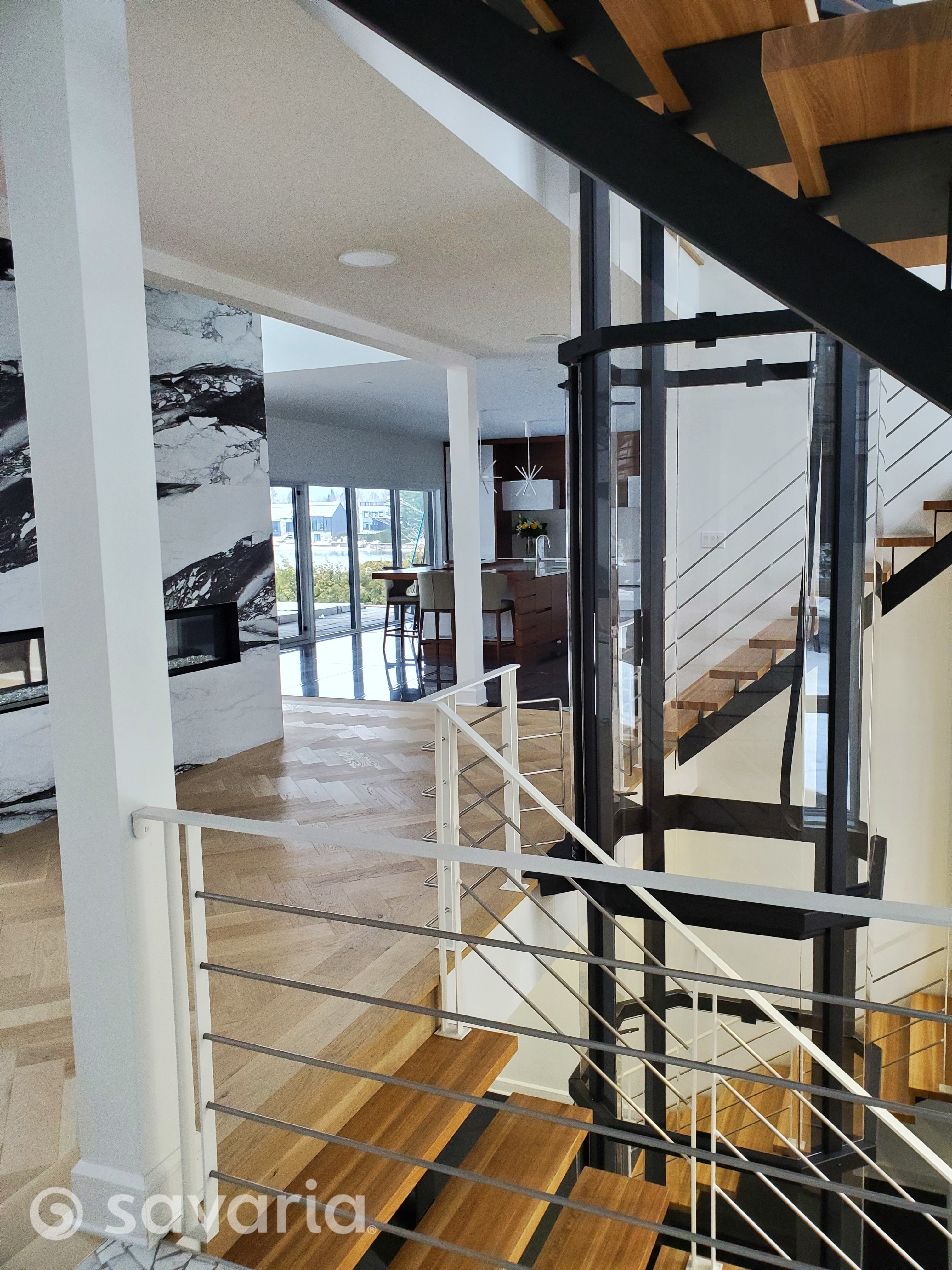

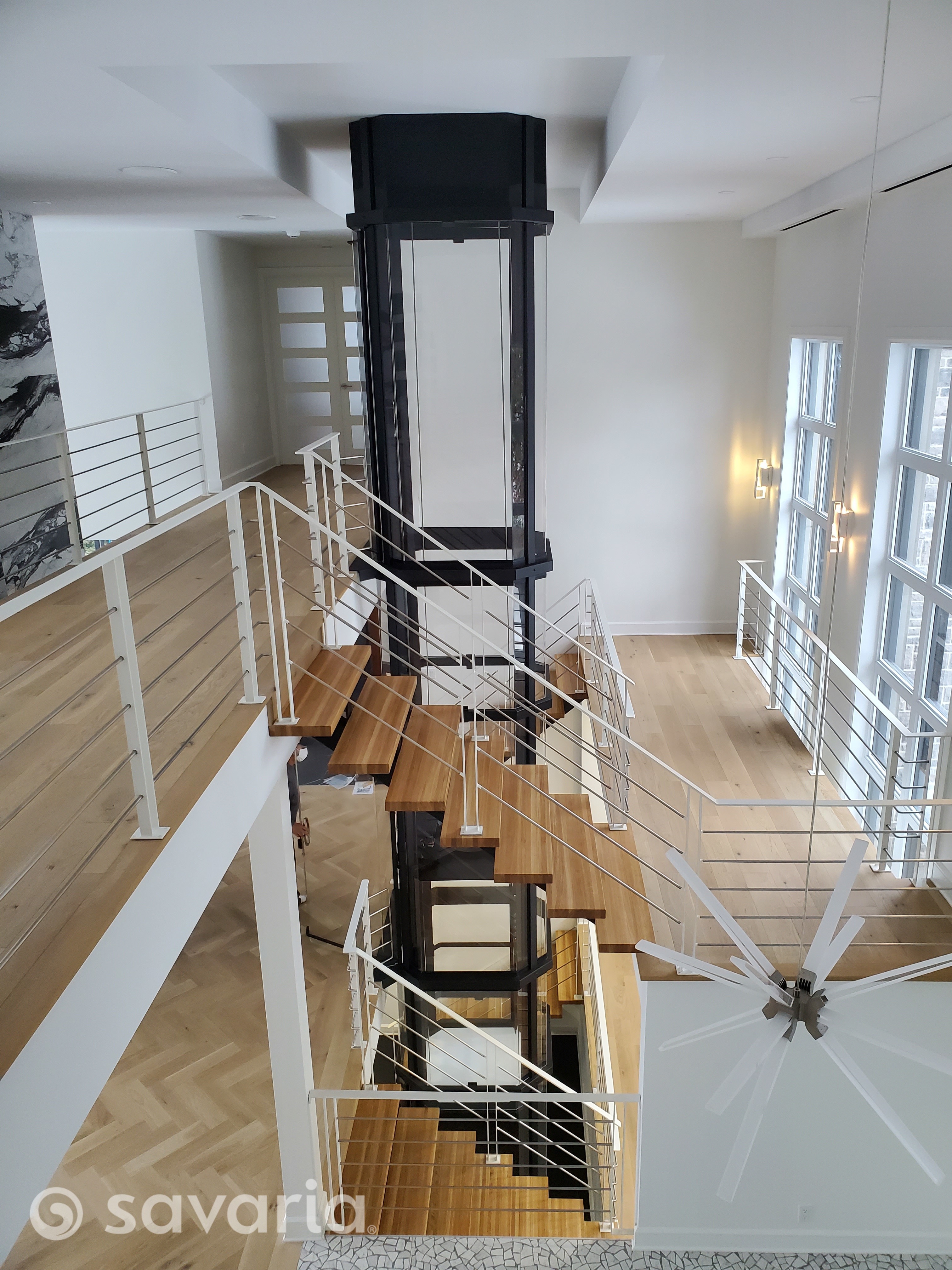

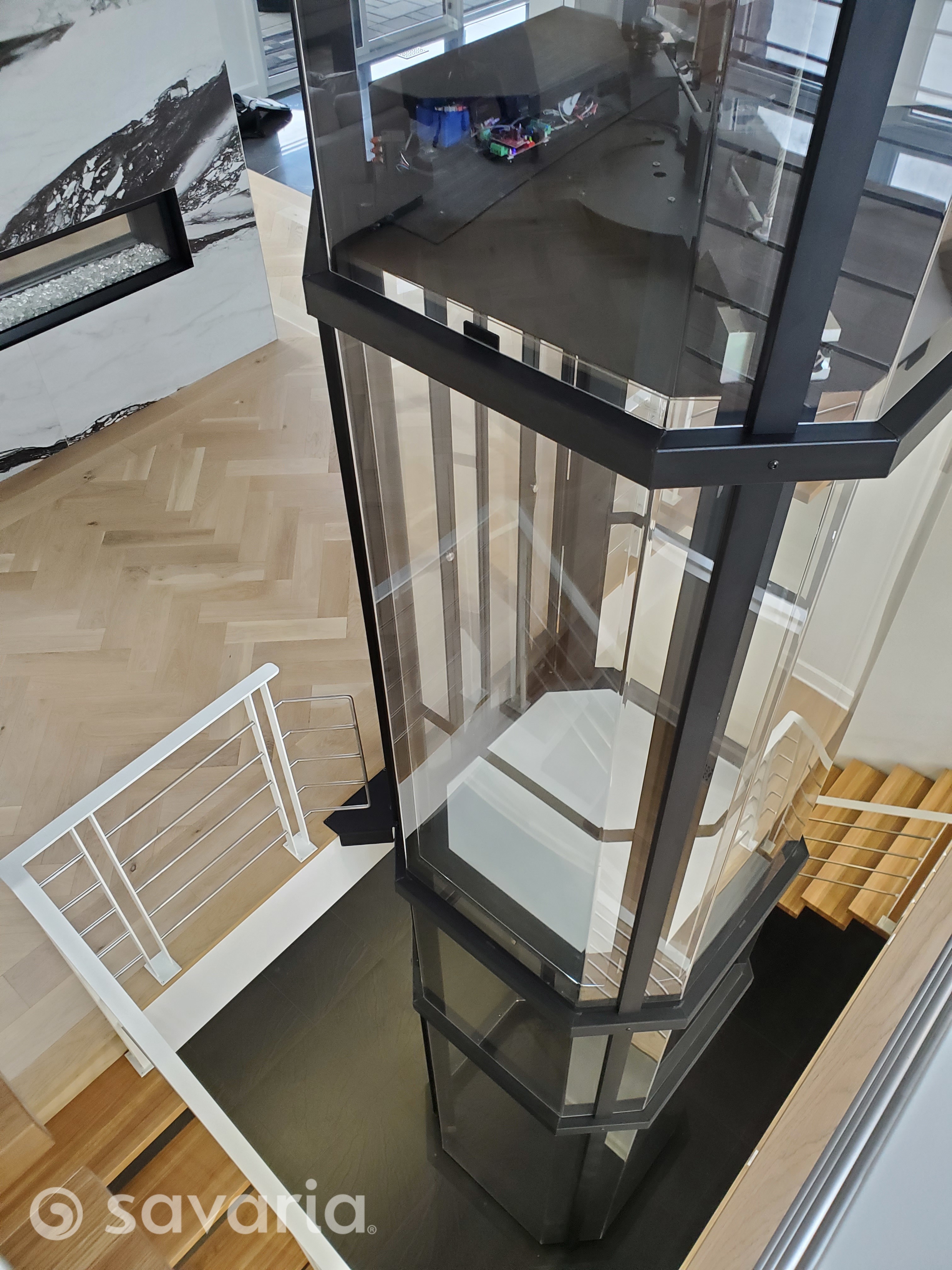

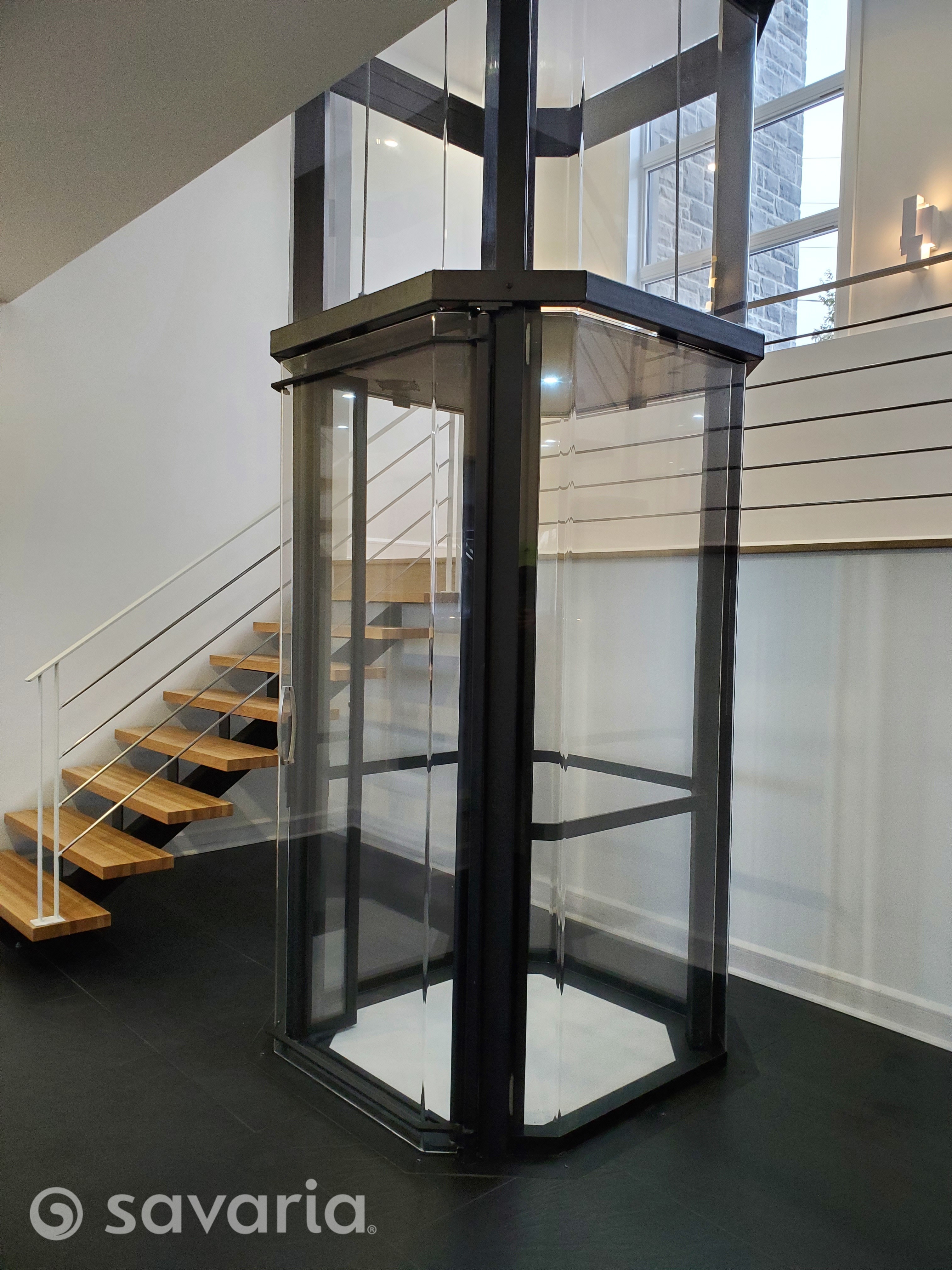

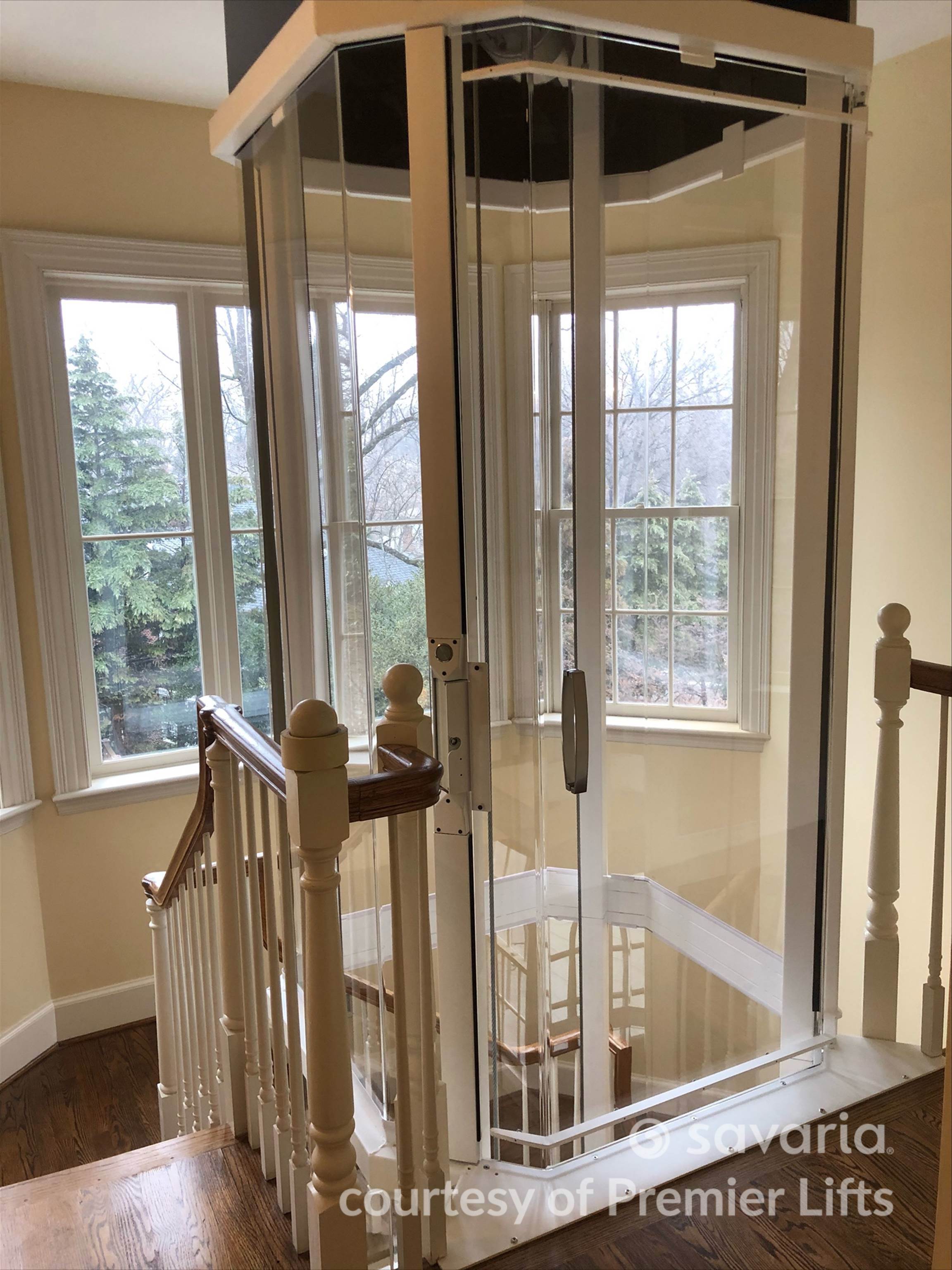

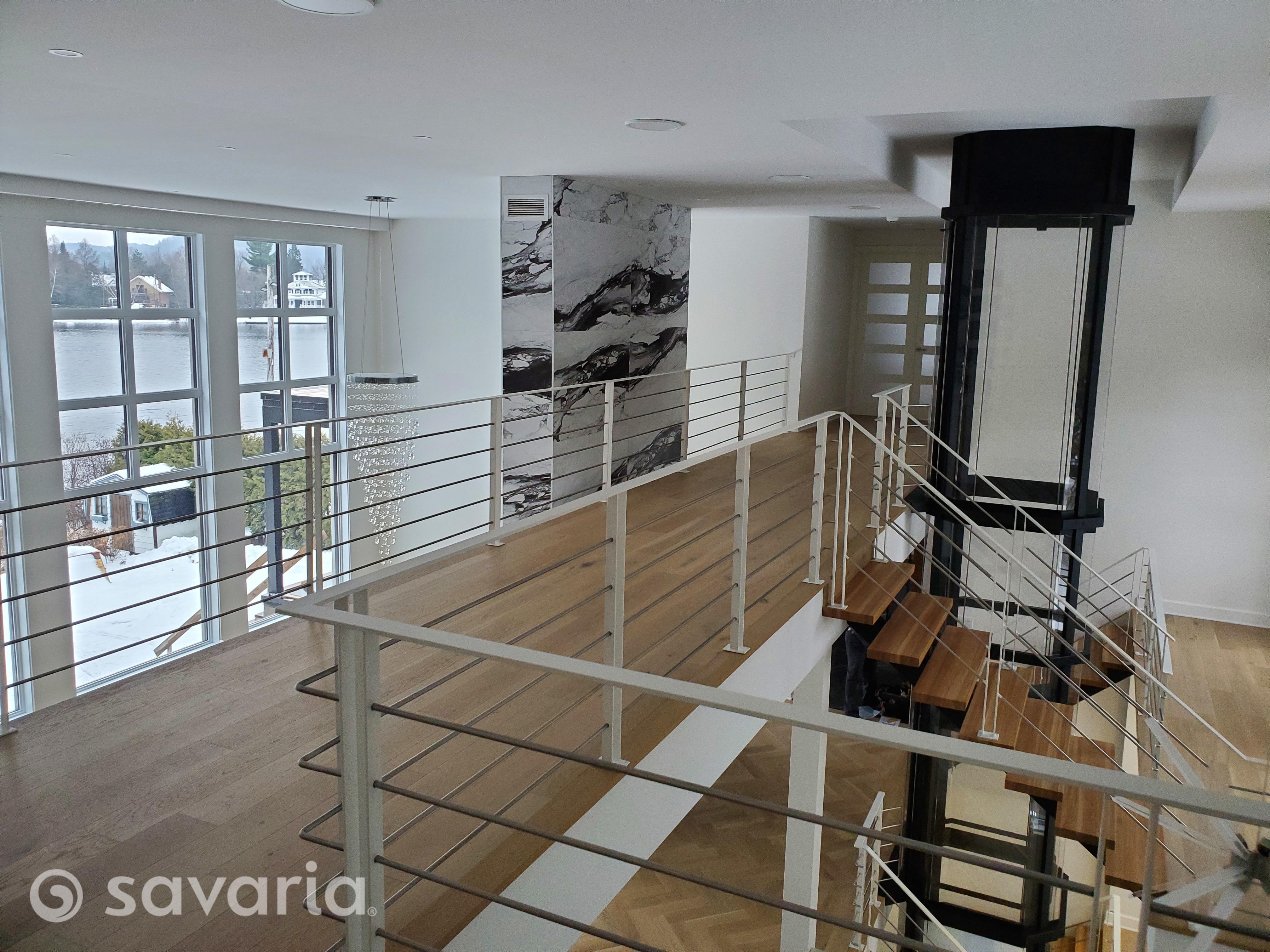

Introducing the Savaria Vuelift range, the latest in our line of luxury home elevators. Available in a sleek octagonal configuration or a smooth round alternative, the Vuelift is a dramatic yet classy addition to any home. Self-supporting and with 360-degree panoramic views, either version of this incredible lift will undoubtedly make a statement in your home while futureproofing it for years to come. Passengers are treated to seamless travel between floors thanks to reliable winding drive technology that provides a stable and smooth journey for up to six floors. With plenty of customisation options available to suit your property best, the Vuelift is the perfect choice for anyone seeking that extra special touch of accessible luxury in their homes.

Built using the finest and most reliable of materials and components, the Vuelift is a luxurious home lift designed to elevate your home and stand the test of time.

Make an Enquiry Today

Tech & Safety

Vuelift’s design is fully compliant with all home lift safety regulations. Many important safety features are built in as standard, including;

Travel Height All Vuelifts can travel up to 13m - up to 6 stops
Travel Speed 0.16 - 0.2 m/s depending on the configuration that you choose.
Capacity 840-950lb depending on the configuration chosen.
Power Supply 230V/1PH/50–60Hz (30 amps) and one 120V/1PH/50–60Hz (15 amps)
Pit Depth 4-12" (102-305mm). A ramp is available if a pit is not possible.
Safety/Emergency Systems
  • Battery back-up for emergencies in order to power cab lighting and lowering systems
  • Manual lowering availability to ensure you can always
  • Alarm and stop switch system for emergencies
  • Electrical circuit overspeed
  • Safety brakes
  • Lift door interlocks
  • In-use indicator lights on-call stations

Options

Both the Savaria VueLift Octagonal and the VueLift Round are both eligible for a number of customisation options, from the colour finish, to configurations and height. These can include:

  • One, Two or Three Door configurations, including straight-through, 90-degree and three-sided entry/exit configurations
  • Small pit, or ramp available depending on the needs of your property
  • Black, White, silver or custom powder-coated frame colour
  • Up to 6 stops
  • Glass or Acrylic options

Features and Benefits

Luxurious Style

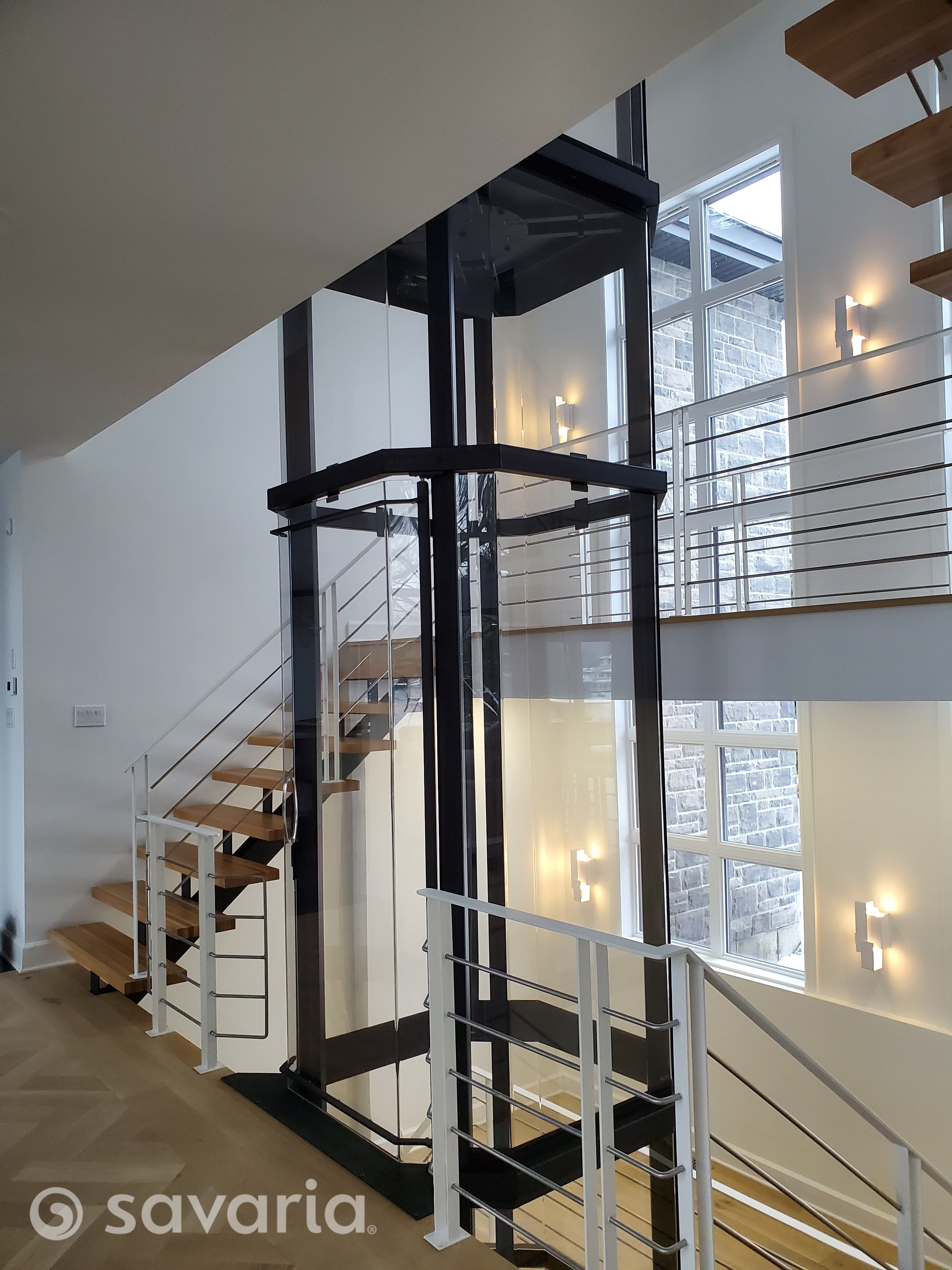

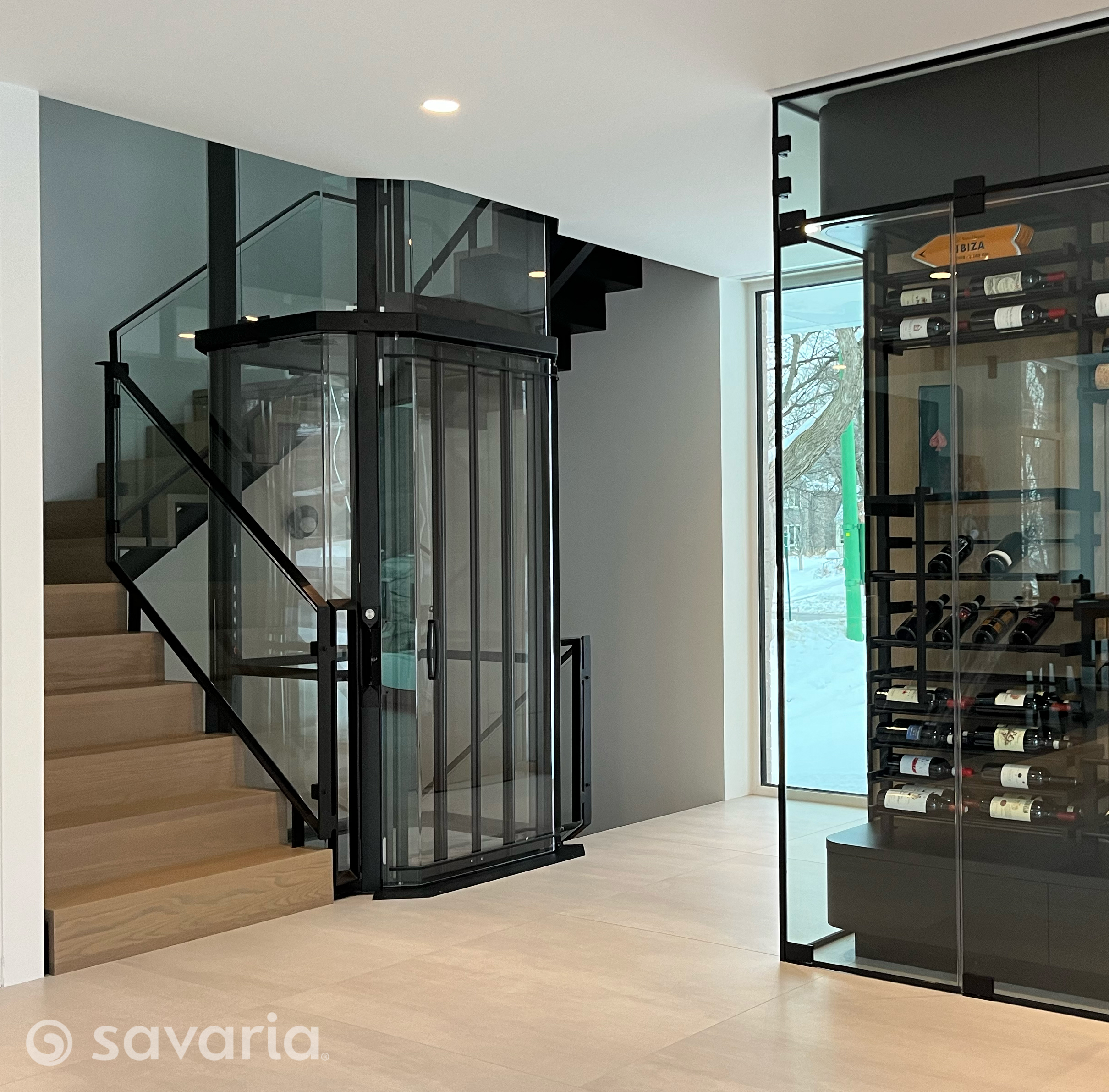

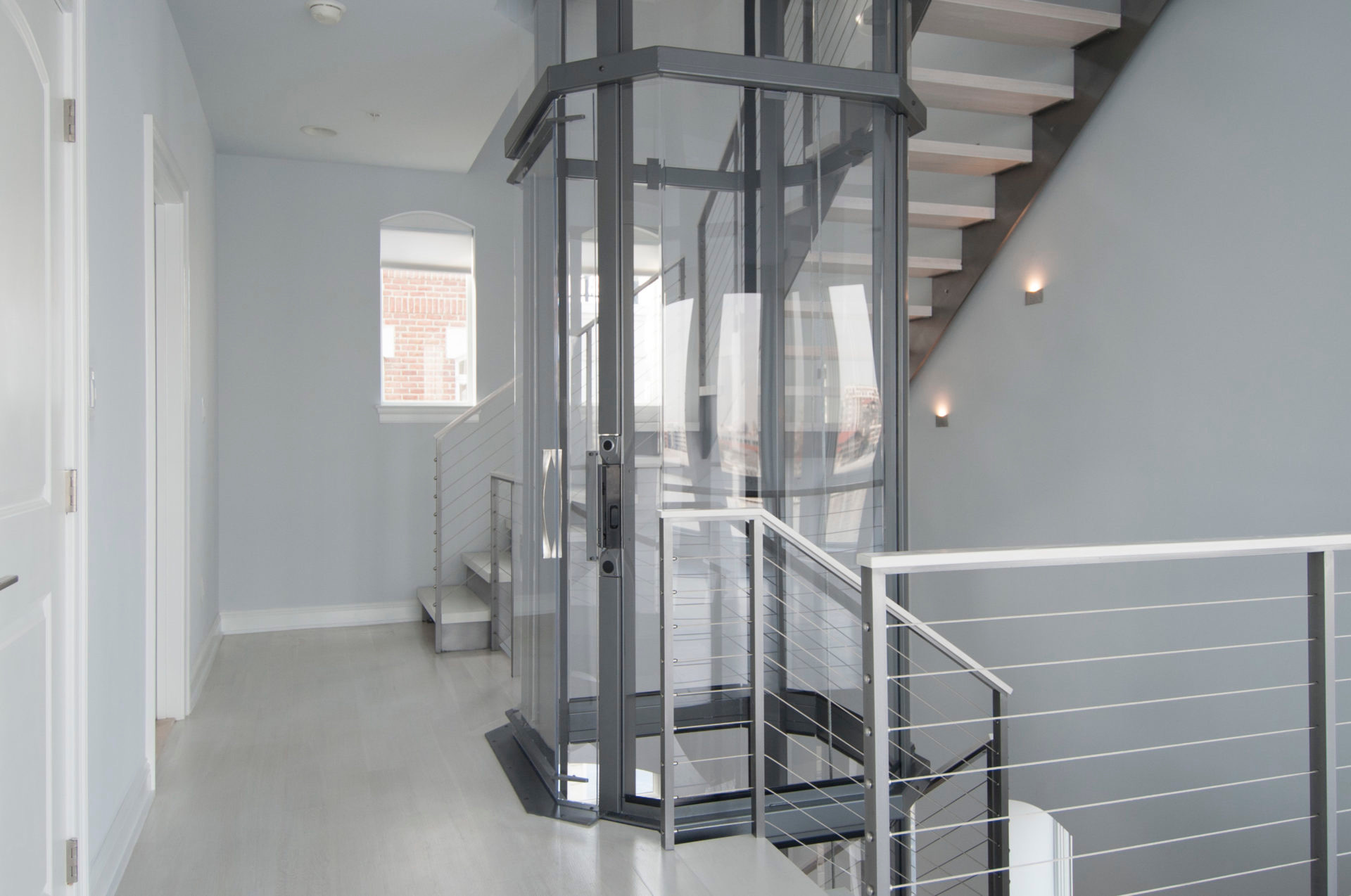

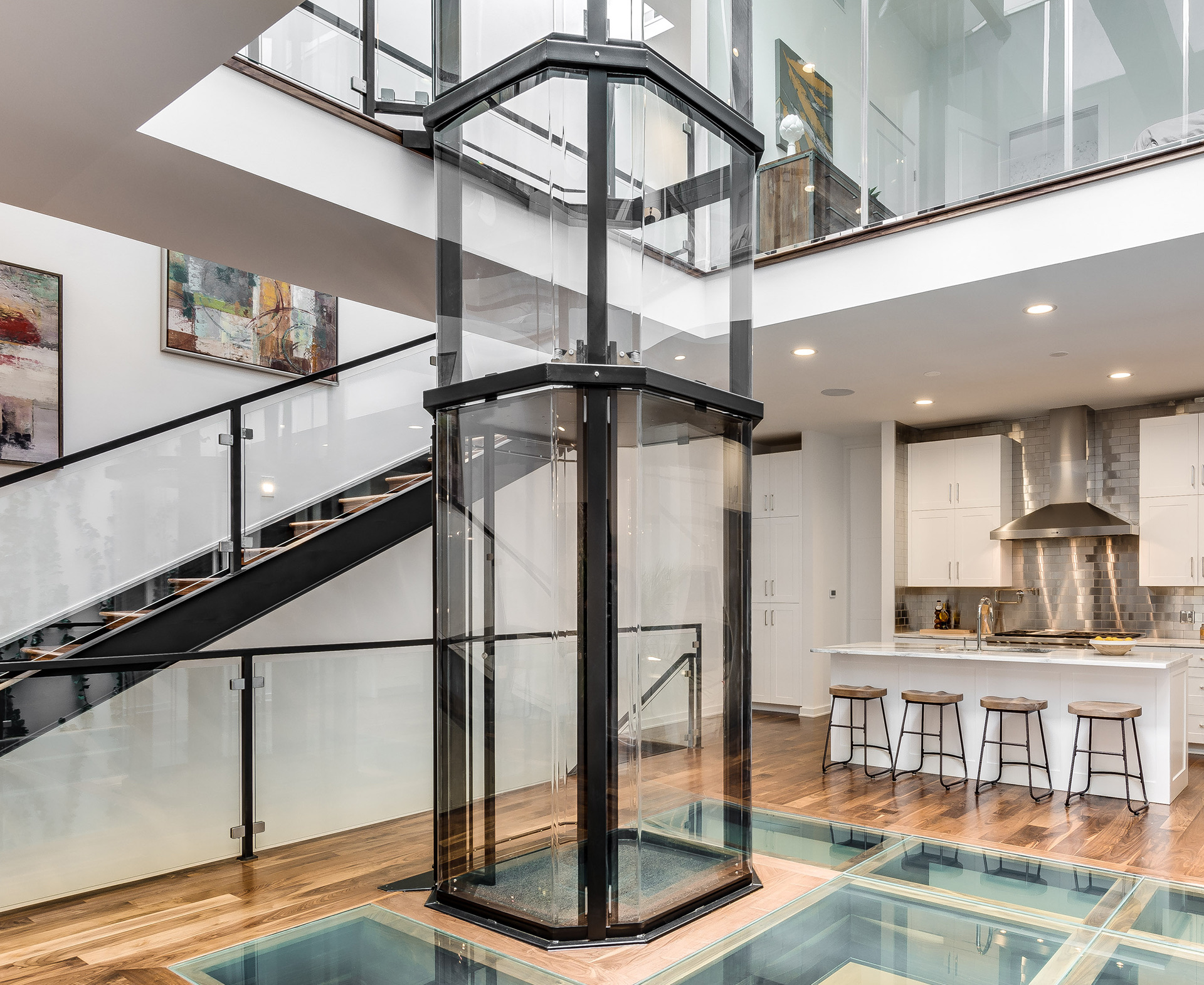

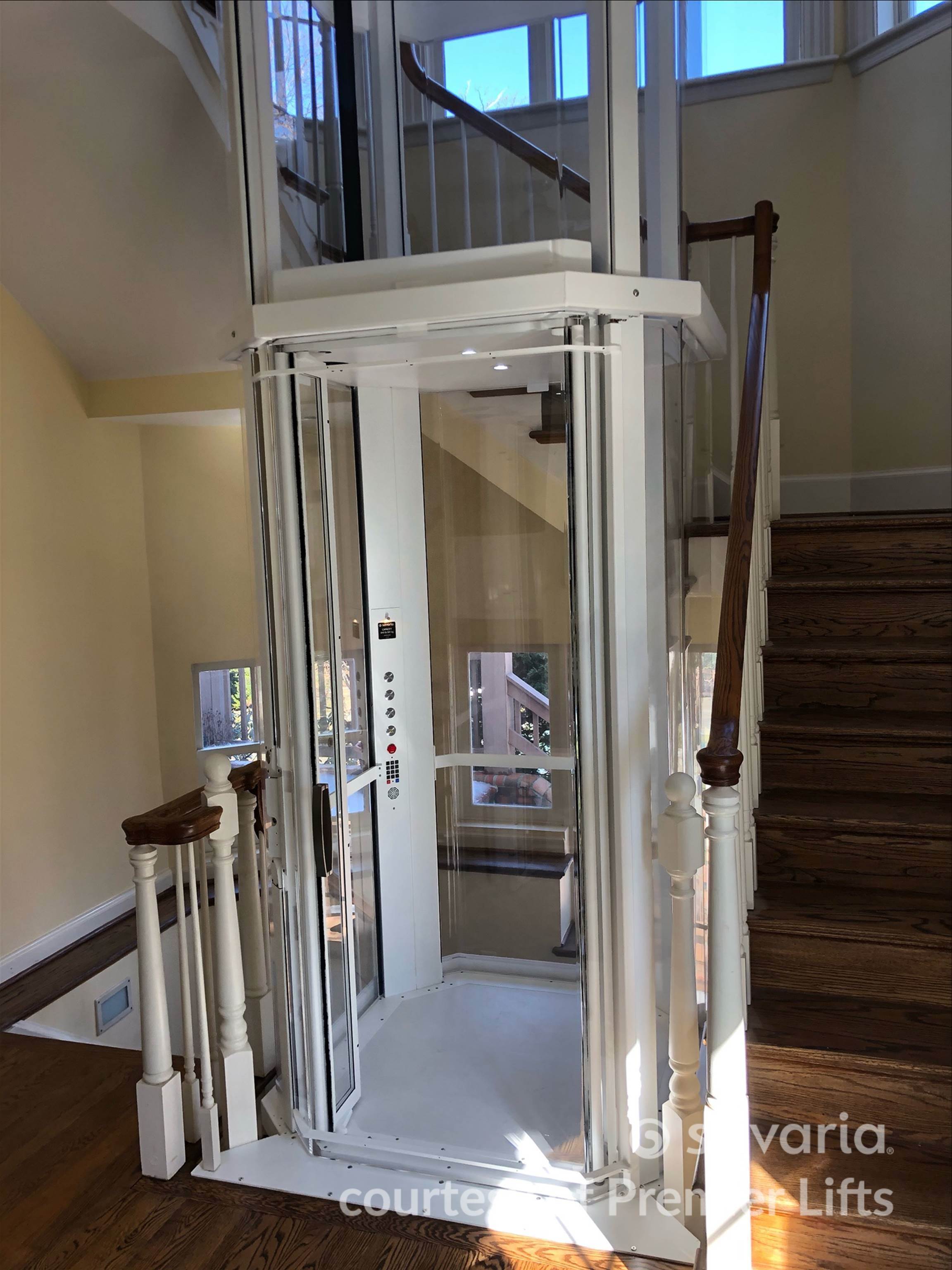

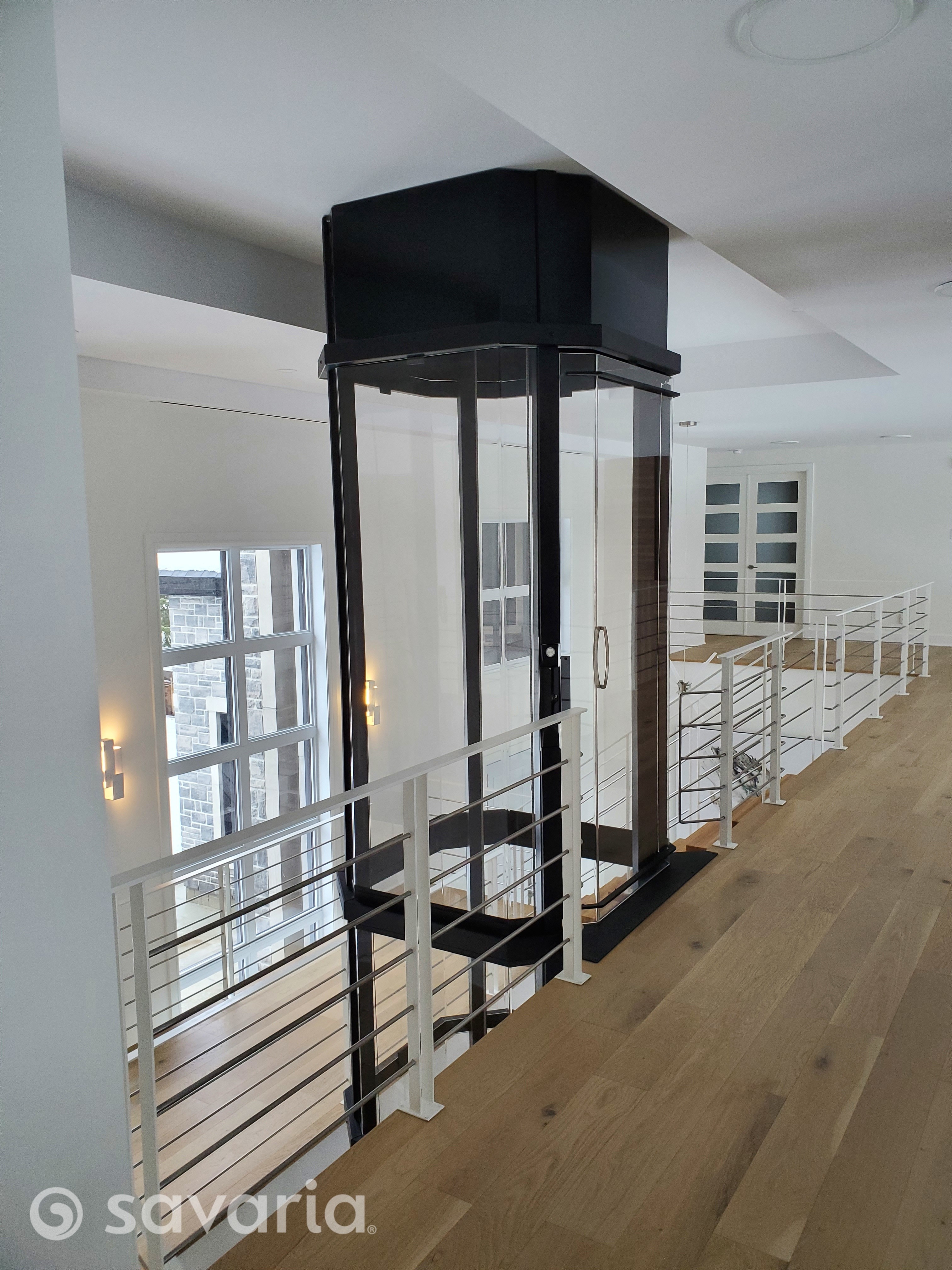

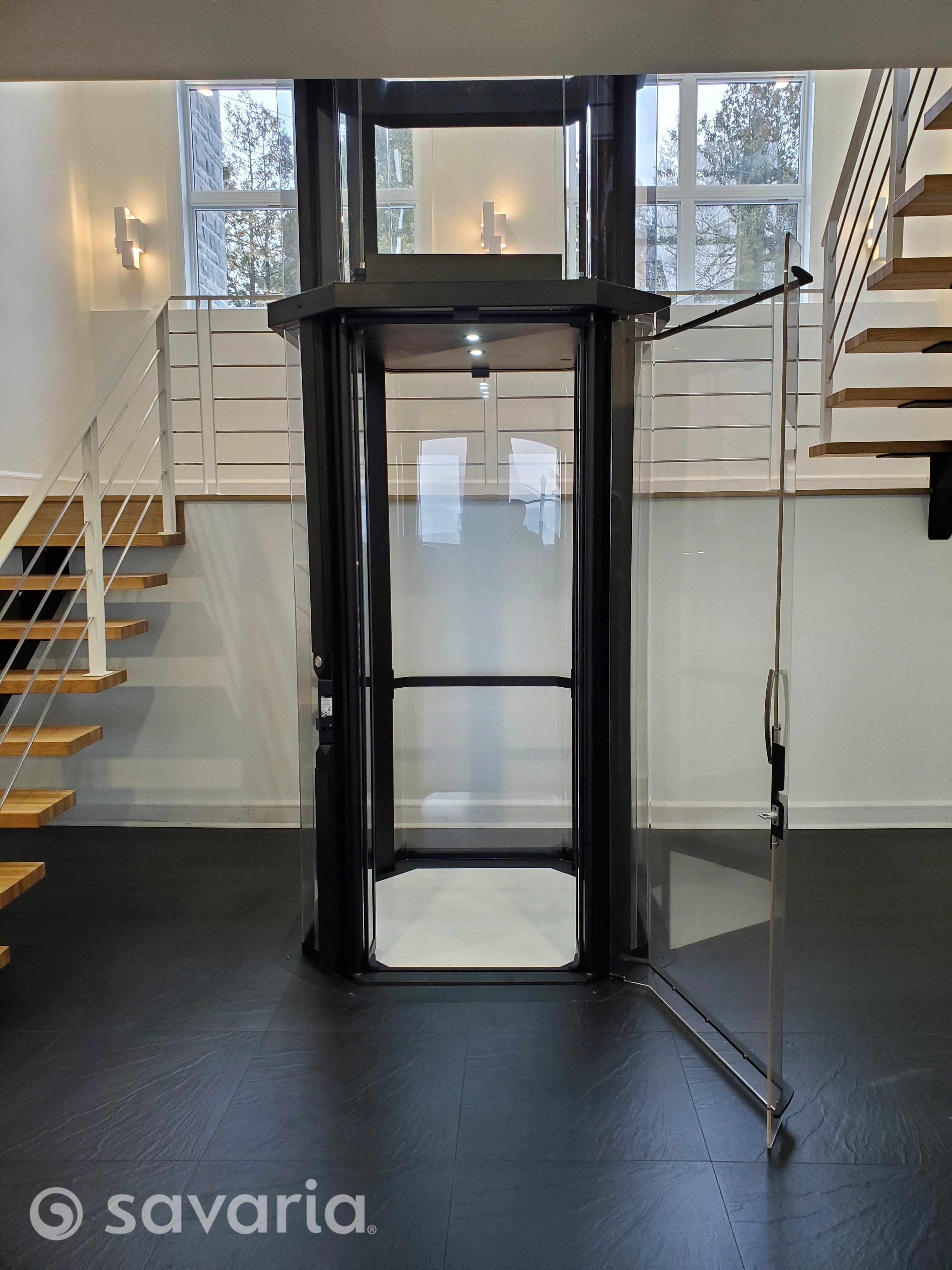

Panoramic glass home elevator. Available in an octagonal profile with an integrated hoistway.
Panoramic Views Get treated to 360-degree views from your Vuelift, with the choice between low-iron silica glass or clear acrylic for clarity, longevity and easy cleaning.
Drive Reliable winding drive that utilises aircraft cables for a stable, smooth ride between floors.
Stops A self-supporting lift that can travel up to 6 stops (42.5')
Capacity Up to 950lb for glass models, and 840lb for Acrylic models
Customisable Finishes Choose from a range of sleek powder-coat finishes in black, silver or white as standard, with custom colours also available.
High Quality Materials The Vuelift is crafted from premium materials, from the panels to the metal fixings. You can rely on the quality and longevity of your new Vuelift home lift with the knowledge that it has been crafted with only the finest of materials.
Easy Installation The design of the Vuelift lends itself to easy installation with minimal fuss and no mess. When your lift is installed, it will be delivered in easy-to-transport components that are fitted together by installation experts to ensure your lift stands strong for years to come. It can be installed with or without a pit, through floors or through a stairwell with ease.

Dimensions

VueLift Octagonal:

  Octagonal Acrylic Octagonal Glass Octagonal+ Glass
Cabin Floor Area 1.2 sqm (12sq. ft.) 1.2 sqm (12sq. ft.) 1.4sqm (15sq. ft.)
Capacity 840lb (381kg) 950lb (431kg) 950lb (431kg)

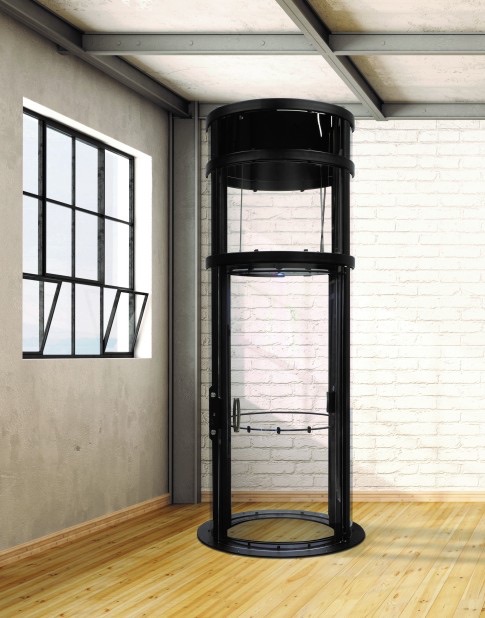

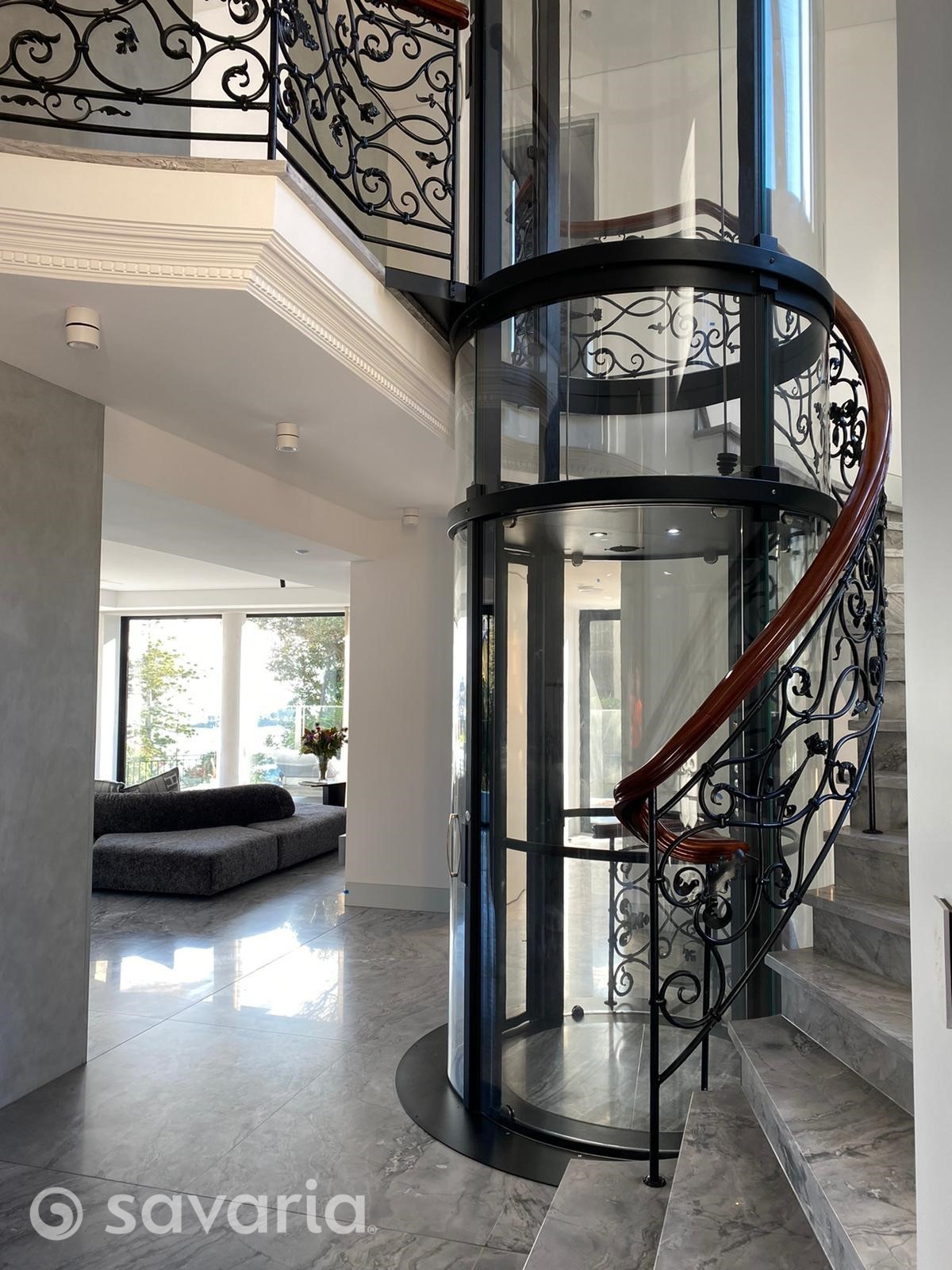

VueLift Round:

  Round Acrylic Round+ Glass
Cabin Floor Area 1.3 sqm 1.4 sqm
Capacity 840lb (381kg) 950lb (431kg)

FAQs

  • How Does The Savaria Vuelift Work? The Savaria Vuelift utilises an integrated hoistway within the self-supporting shaft, operating on a reliable and smooth winding system. This operation style ensures that every journey is seamless and that no existing hoistway or elevator shafts are required for installation.
  • Does The Savaria Vuelift Require A Pit? A small pit is required for the installation of the Savaria Vuelift, however, there is the option to install a ramp if a pit is not possible.
  • How Long Will I Have To Wait For My Savaria Vuelift? Manufacturing times for the Savaria Vuelift may vary depending on a variety of factors, including the model that you order, the level of demand at the time and the demand for materials. We will remain transparent with you and provide accurate delivery times to keep you in the loop.
  • Is The Savaria Vuelift Safe? Safety is our number one concern, which is why we take great care in ensuring that all of the products and installations we provide meet the highest safety standards. The Vuelift is crafted with the best and finest materials available, with reliable components that either meet or exceed even the strictest of safety guidelines here in the UK.
