Pneumatic Vacuum Elevators

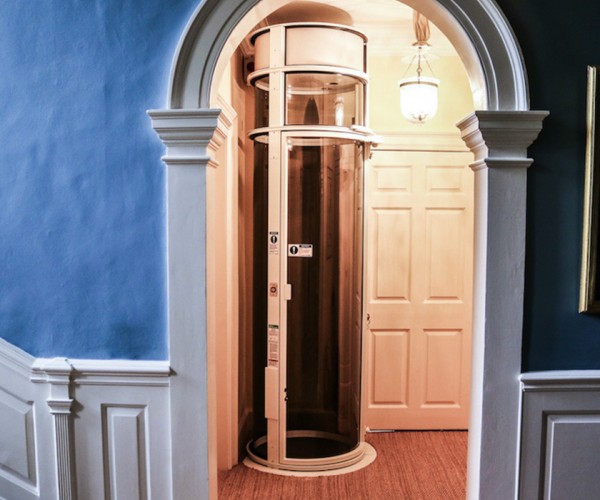

The Vacuum Lift Collection.

Our range of vacuum lifts are some of the most sought after and exclusive lifts available from us

Here at Morgan Ellis Lifts we are pleased to offer three versions of our Pneumatic Vacuum Elevators, our elevators range from our single to two passenger as well as our three passenger wheelchair-accessible cabin.

All of our vacuum home lifts are capable of up to an 11m vertical rise over as many as four floors. The unique design of our vacuum elevators are a perfect choice for any construction project and will enhance the value of your home without the consuming footprint of a traditional home elevator.

MAKE AN ENQUIRY

Technical Specifications

Travel Height

PVE 30/37/52 - 15,000mm / 1500cm / 15m

Number Of Floors

PVE 30/37/52 - 2 To 5 Floors

Travel Speed

PVE 30 - 30ft/min / 0.15m/per second

PVE 37 - 30ft/min / 0.15m/per second

PVE 52 - 20ft/min / 0.1m/per second

Capacity

PVE 30 - 1 Person (158kg)

PVE 37 - 2 Person (204kg)

PVE 52 - 3 Person/ 1 Wheelchair (238kg)

Cabin Diameter

PVE 30 - 521mm / 52cm / 0.5m

PVE 37 - 813mm / 81cm / 0.8m

PVE 52 - 1118mm / 112cm / 1.12m

Cabin Height

PVE 30 - 2005mm / 201cm / 2.01m

PVE 37 - 1956mm / 196cm / 1.96m

PVE 52 - 2007mm / 201cm / 2.01m

Available Colours

White (Standard Colour)

Light Grey

Anodized Silver

Dark Grey

Black

Taupe



Tech & Safety

SAFETY SYSTEMS

In case of a power failure the cabins will automatically decent to the ground floor in safety speed mode. The Mechanical emergency brakes will activate within two inches of freefall in case of vacuum loss or catastrophic failure.

EUROPEAN STANDARDS

All our Pneumatic Vacuum Lifts complie with Europe's strictest safety requirements. It complies with the European Machine Directive 2006/42/EC by following the harmonised standard  EN81-41. It also has CE marking, which means it's a safe product in accordance with EC directives.

Request a Quote

Speak to a member of the team to arrange a FREE Quote.
